DL-1000 Hydraulic Dock Levelers can realize horizontal loading and unloading and improve loading and unloading efficiency. They are widely used in loading and unloading platforms of modern logistics. This product is equipped with safety maintenance support rods to ensure the safety of maintenance personnel when cleaning or maintenance is required.

Swinging Lip
Single plate 16mm thickness, more rugged and durable, does not produce stress cracking problems

Maintenance strut
The Maintenance strut is to protect the workers during the cleaning and repair process to ensure better safety standards.

Safety Valve
Security block: in case of accidental moving of the truck, the dock leveler will be blocked with a short stroke.

Main plate profile
It consists of 8- 12 C-type steel profiles according to plate width. The structure ensures strength and resistance to torsion of the main plate.

Piston
The main piston is for the upper plate and the small piston is for the lip.

Hydraulic unit
99.9% origin imported hydraulic unit High closeness, stable working

Optional Parts
220V.1PH.50HZ
Dual hydraulic lifting system
Open type hinge
Non-standard load, sizes, colors
Brush \ VinyI Seal
Galvanized treatment
500mm long tip board, 600mm depth base pit
Lip with side flaps
Interlocking between the sectional door and locked vehicle setting

The dock leveler with telescopic lip functions as a bridge between the platform and trucks, making it convenient to load and unload cargo.
When the main panel is raised, the straps telescopically move onto the tailgate of the truck.
The 1000mm long deck board is composed of a non-slip pattern plate with a bottom support tube. The top is angled to fit the truck tailgate.
Design of loading and unloading spaces for cold storage cold storage bridges to reduce cold storage energy consumption.

Suitable for industries such as medicine, food, cold storage, etc. that have special requirements for the environment;
Upright storage effectively protects the platform door, reduces damage, and reduces energy loss;
Used in the design of loading and unloading cargo spaces for cold storage cold-break bridges to reduce cold storage energy consumption;
Low maintenance and warranty requirements.

EOM Dock Levelers are a type of loading dock equipment used to bridge the gap between the warehouse or facility floor and the truck bed, allowing forklifts and other equipment to smoothly transition goods between the two surfaces. These levelers are mounted to the edge of the loading dock and are designed for installations where the height differential between the dock and the truck bed is relatively small. They provide a cost-effective solution for facilities with light to medium-duty loading requirements. EOM Dock Levelers are available in various configurations to suit different dock and truck setups.

Applicable to loading and unloading platforms that have been built but have no preset foundation pit;
Large height adjustment range;
Simple operation, saving time and space.

This product uses an advanced low-pressure lifting system to complete the lifting and lowering of the gas tower, and operates smoothly and safely;
The cylindrical air tower with reliable performance can resist puncture and wear, and the product has a long service life;
It has strong durability and wear resistance, does not require frequent maintenance, and has low maintenance costs.

Suitable for loading and unloading platforms that have been built but do not have a preset foundation pit;
Manual operation is adopted;
Easy to operate, saving time and space;
Made of galvanized steel and aluminum alloy, strong and durable.

It suits a wider range of vehicles and puts less pressure on building walls.

When the truck touches the dock to load goods, a dock shelter can wrap the back of the lorry to ensure a close and dustproof environment.

Application features
●It can cooperate with more vehicle types and requires less wall load-bearing capacity of the building. Multiple choices that can meet your special needs.

Retractable frame structure
●The dock shelter is made of galvanized steel whose cross section is 60x30mm. The front and the back frame are connected by a retractable rod. It can
retract when the truck is pushing and go back to its origin when the truck leaves.

Side and top PVC curtains
●The side and top curtain is made of 1mm thickness PVC fabric. The weight is 750g/m².
●Breaking strength: 4000/4000 N/5cm
●Tear strength: 580/500 N

Surface PVC curtain
●The front curtain is made of 3mm thickness PVC sheet. It has double-reinforced nets inside. It has reliable crash resistance, flexibility, and corrosion resistance performance.
●Top curtain height: 1000mm
●Side curtain width: 700mm

They are designed for platforms in cold storage with relatively uniform vehicle models, walls that can bear pressure, and high sealing requirements.

Application features
●Suitable for door shelter applications that have strict requirements for insulation, the same vehicle type, and more wall load-bearing capability.
●We offer a wide variety of Dock Seal designs to suit dif-ferent sizes of vehicles, such as non-adjustable, adjustable, curtain hanging type, inflatable type, etc.

Dock seal PVC fabric
●There are self-extinguishing PVC curtains that function, and weigh 800 g /m2, and on both sides of the dock, the seal has added pleated blinds that can withstand lasting wear compression.

Structure and sponge
●Electroplated steel plate liner or wood preservative pad, completely fits the wall, the door seal is filled with a highly compressed sponge, a density of cubic 30KG.
●Sectional dimensions: 300mm x 300mm

Sealing products with good sealing performance and a wide range of models.

Application features
●It can cooperate with trucks of different sizes with a good insulation effect. It is suitable for applications that require strict temperature scope, long docking process duration, or cold storage.

Structure and figures
●It comprises 2 side inflatable PVC fabrics and 1 top inflatable PVC fabric. Air inflation should be done by air blower 3 phase,380V. There is weight recovery unit inside that realizes opening and closing.
●Inflation time: 15 seconds
●Close time: 15 seconds

The use of loading and unloading areas can effectively prevent risks caused by trucks accidentally leaving, trucks moving, trailers overturning, truck supports tilting, etc., and risks such as forklifts falling from the platform.

Application features
●It is installed on the dock facade and floor. It prevents the truck from moving by locking its anti-crash tail rod. Thus, the forklift can load or unload goods safely and steadily.
●Tension: 16000kg

Signal Light
●Signal lights are available to give clear direction for vehicles and forklifts during operation.

Safe Operation
Electric buttons control the starting and exiting programs;
Automatically adjusts according to the floating height of the truck to maintain a tight fit;
When the truck deviates or the tail lever of the truck is not in the effective locking position, the device will sound an alarm to remind the operator that the truck is not locked properly.

Optional
Optional manual operation;
It can be interlocked with the loading and unloading platform and sliding door, and adopts an integrated control box for linkage control;
The circuit design controlled by PLC can be equipped with a variety of additional safety devices (such as electro-optical eyes, pressure switches, etc.).

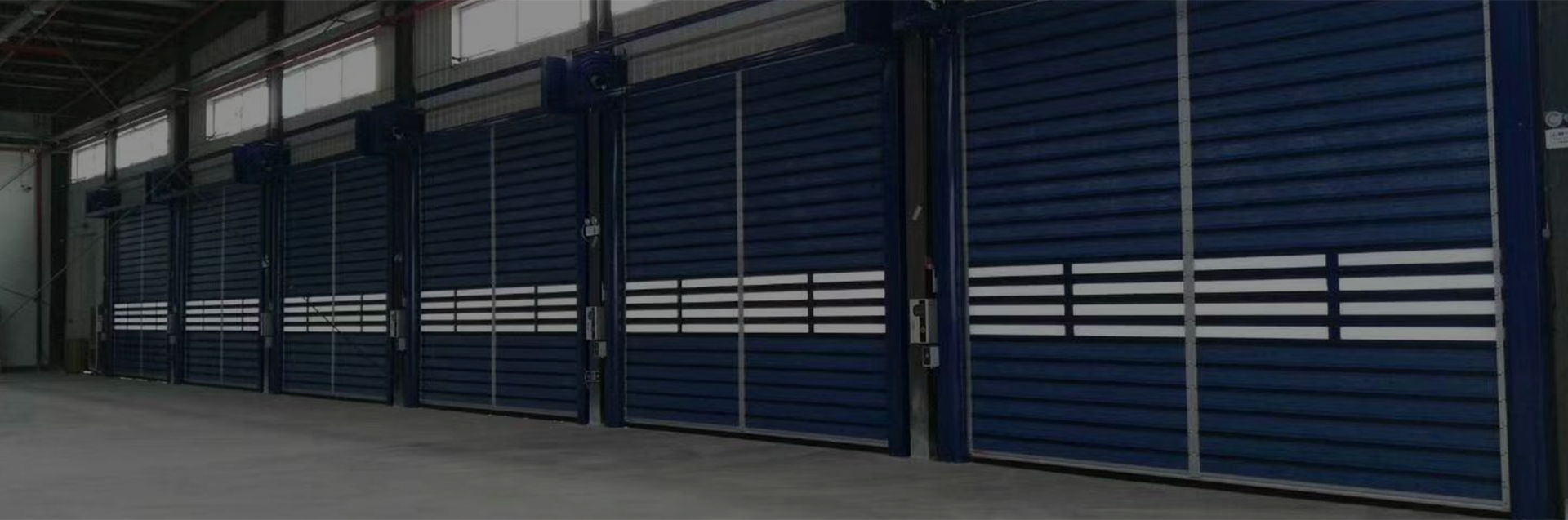

Suitable for high-speed and frequent thermal insulation entrance and exit solutions, It has good sealing performance, which can prevent the intrusion of external factors such as dust, wind, and rain, and keep the indoor environment clean and comfortable.
